EKO-LUNA
The EKO-LUNA LED Street Light series offers versatile lighting solutions with power options ranging from 20W to 240W. Featuring a robust aluminum die-casting housing with a super white tempered glass and white Nano reflector, this street light is designed for optimal thermal management and low lighting decay. The series includes various lens types and beam angles to accommodate different lighting needs, with high-quality LED chips providing superior luminous efficiency. It supports both Class I and Class II safety standards and can be mounted on top-post or side-entry positions. Additional features include an Akzo Anti-UV pure polyester powder coating and compatibility with smart-city control technologies through Nema/Zhaga sockets. The EKO-LUNA series is ideal for urban and highway lighting, offering tool-free maintenance and high durability.
Features
-
- Robust Construction: Available in three sizes with an aluminum die-cast housing, super white tempered glass, and a white Nano reflector.
- Thermal Management: Incorporates advanced thermal radiation technology and a built-in imported breather design, reducing lighting decay.
- Optical Flexibility: Features multiple beam angle PC lenses for uniform and comfortable lighting distribution, tailored to different optics requirements.
- High-Quality LEDs: Equipped with high-quality LED chips and a programmable driver (0-10V/DALI) with options for 10kV/20kV surge protection.
- Safety Standards: Compliant with Class I / Class II safety standards, available upon request.
- Versatile Mounting: Supports top-post and side-entry mounting, with adjustable angles for an installation diameter of Ø60mm.
- Durable Coating: Finished with Akzo Anti-UV pure polyester powder, providing resistance against environmental factors.
- Health and Safety: No photo-biological risk (infrared, blue light, or UV), meeting EN 62471 standards.
- Smart City Integration: Compatible with Nema/Zhaga sockets for smart-city control technology.
- Maintenance: Designed for tool-free maintenance, simplifying upkeep.

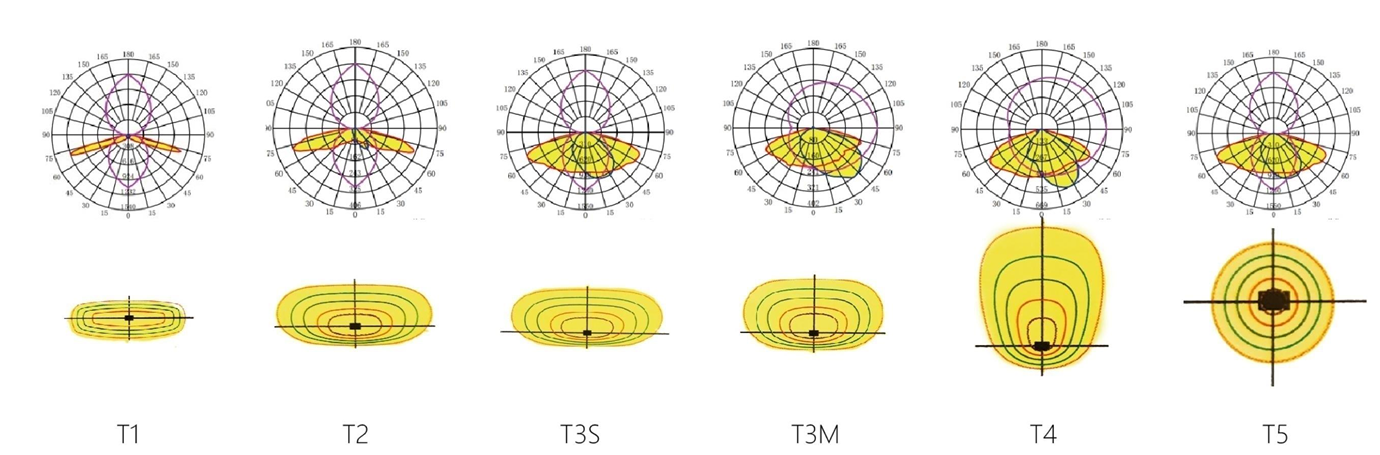

Photometric Data
Technical Data

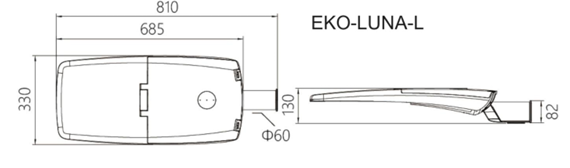

Diagrams
Optional
