EKO-10
The EKO-10 Photocell is a thermal relay-type photo control unit designed for outdoor street lighting. It automatically controls lighting by sensing ambient light levels, turning lights on at dusk and off at dawn. The photocell operates within a temperature range of -10°C to 70°C and supports a voltage of 240V, 50Hz. It features low power consumption, stable operation in various weather conditions, and a fail-safe mode that ensures continuous operation if a fault occurs. This reliable and durable photocell is ideal for efficient and automatic street lighting management.

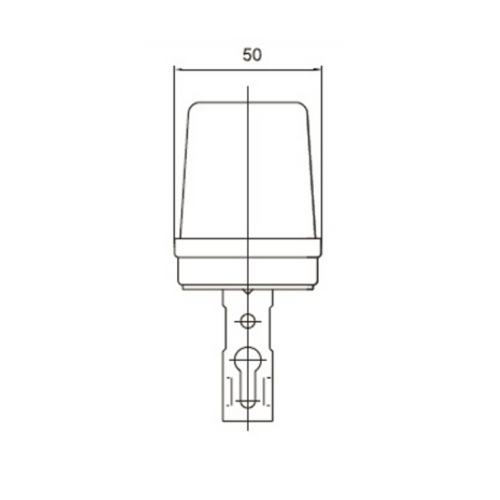

Dimension
Application:
The EKO-10 Photocell is a thermal relay-type photo control unit, ideal for controlling external street lighting from dusk to dawn.
Specifications:
- Operation Levels: 10 ~ 80 Lux for 'ON', less than 400 Lux for 'OFF'
- Operating Temperature Range: -10°C to 70°C
- Rated Voltage: 240V AC, 50Hz, compliant with ANSI C136.10
Features:
- Automatic On/Off: Uses light sensing to control lighting, activating at dusk and deactivating at dawn.
- Thermal Relay Technology: Prevents random switching caused by external light sources like vehicle headlights or cloud cover.
- Robust Performance: Maintains reliability and durability under varying temperatures and mechanical forces.
- Low Power Consumption: Efficient operation compatible with both 50Hz and 60Hz power frequencies.
- Stable Cadmium Sulphide Cell: Provides consistent and stable performance.
- ASL Photocell Synchronization: Allows for easy adjustment and synchronization with ASL photocells.
- Fail-Safe Operation: In the event of a malfunction, the photocell maintains the 'ON' condition until repair, ensuring continuous lighting.
Technical Data
